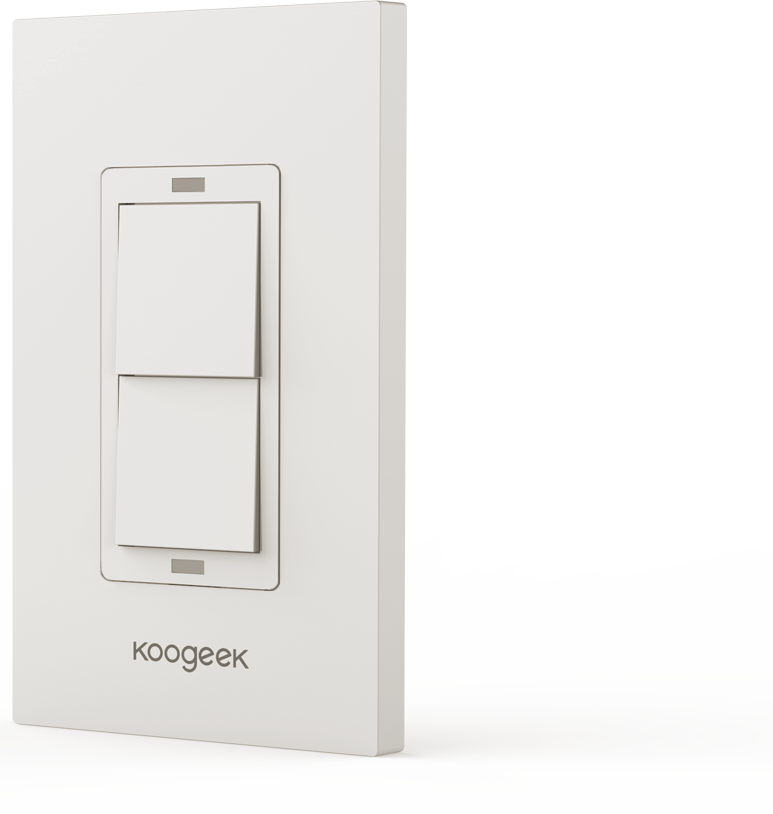

Wi-Fi Enabled Smart Light Switch

Support Siri Voice Control

Comply with Apple HomeKit technology. You could control it with the Koogeek Home app or Siri voice commands.

Easy Pairing & Remote Control

Using 2.4GHz Wi-Fi to connect and remotely control Koogeek Smart Light Switch with your iPhone, iPad, iPod touch or Apple Watch.

2.4GHz

Safe and Reliable

Built-in soft-start circuit can prevent surge current and ensure the regular and reliable operation of the switch.

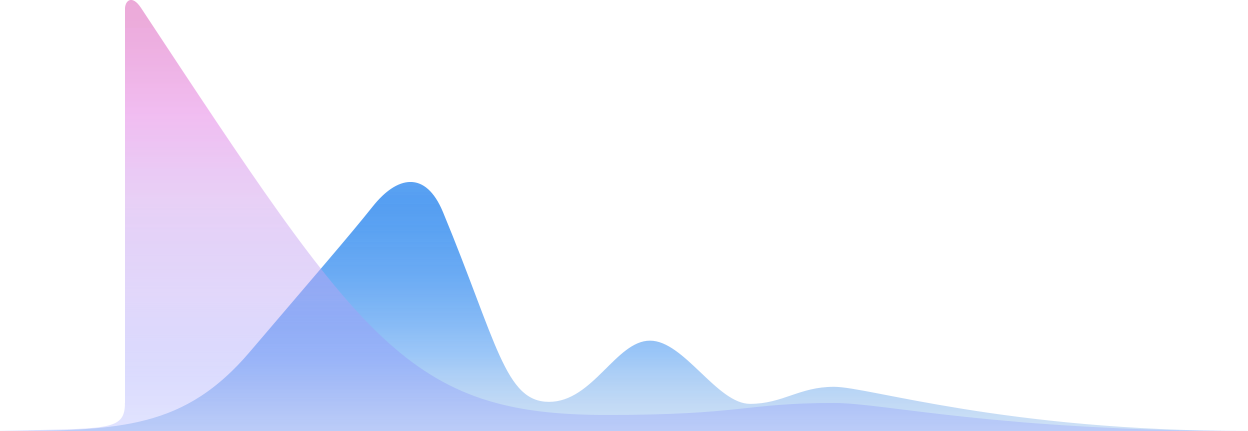

Prevent Surge Current

Maximum load

Soft-start circuit
Conventional circuit

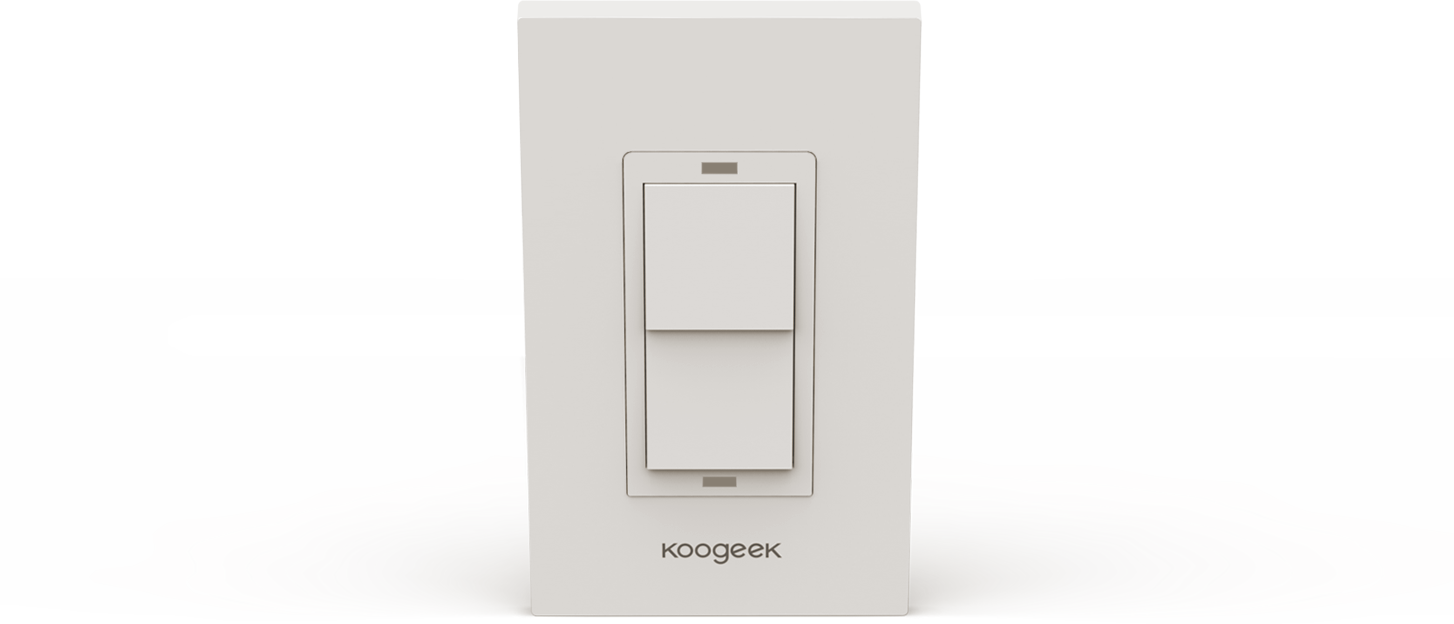

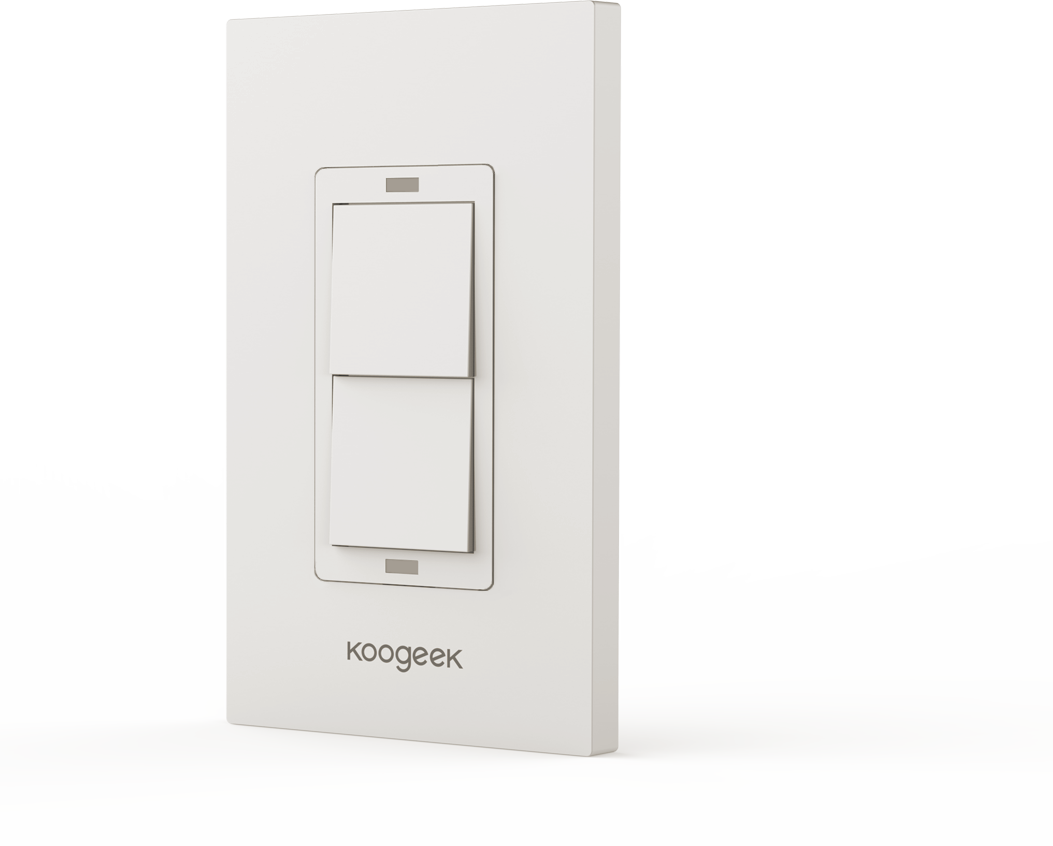

2-gang Design

The 2-gang design enables you to control and monitor two connected lights simultaneously with one smart switch.

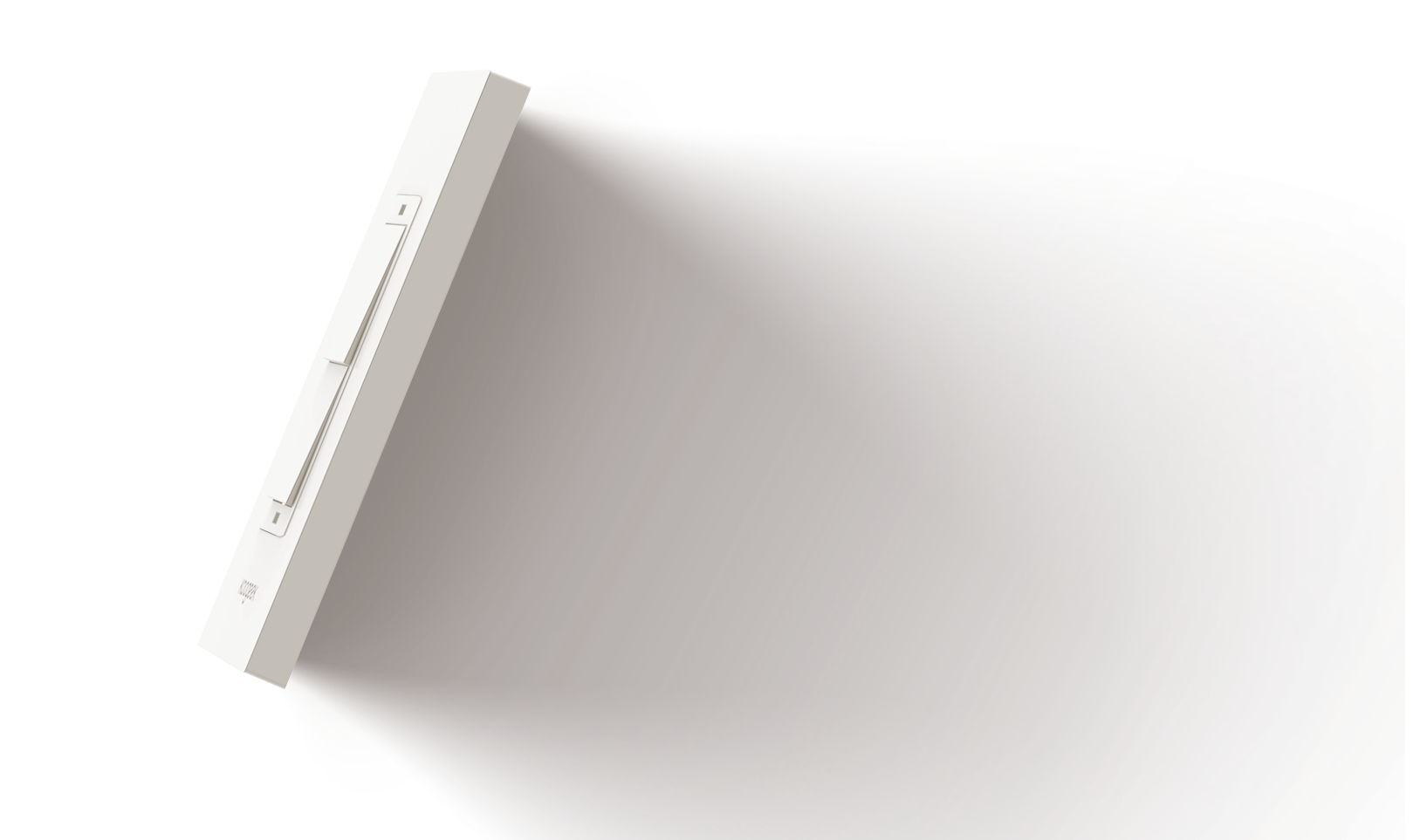

High-quality Material

Adopt V-0 grade flame-retardant PC panel

Over-current & Over-heat Protection

The switch will automatically cut off when the internal temperature reaches 85。 C or the current is over 12A.

Monitor Power Consumption

Monitor real-time, daily and monthly electric power consumption via the app.

Automate and Remotely Access

You can set up your Apple TV or iPad as a home hub to control your HomeKit accessories remotely, grant access, and automate your accessories.

Learn more >

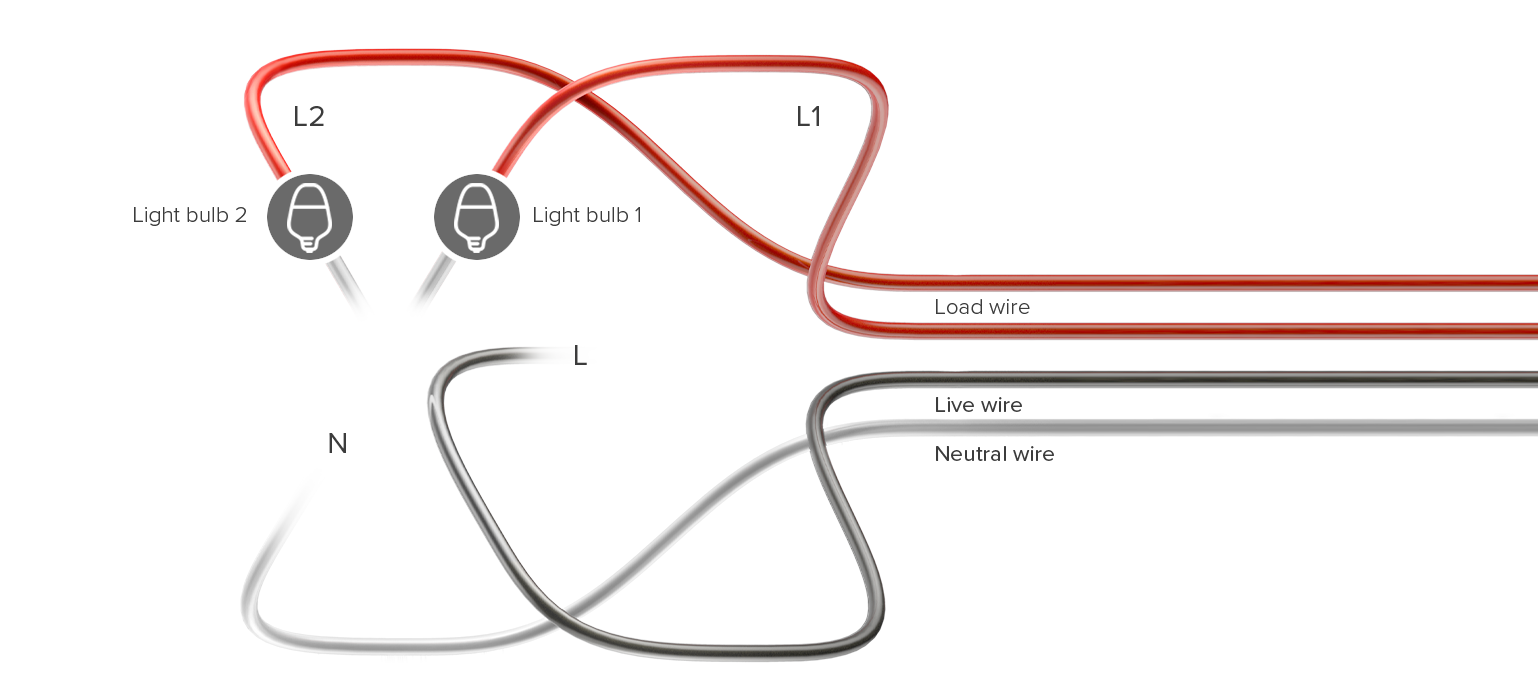

Easy Installation

Watch the product film
WARNING!

This is an electrical shock hazard. Please call a professional electrician if you are unfamiliar or uncomfortable with electrical work.

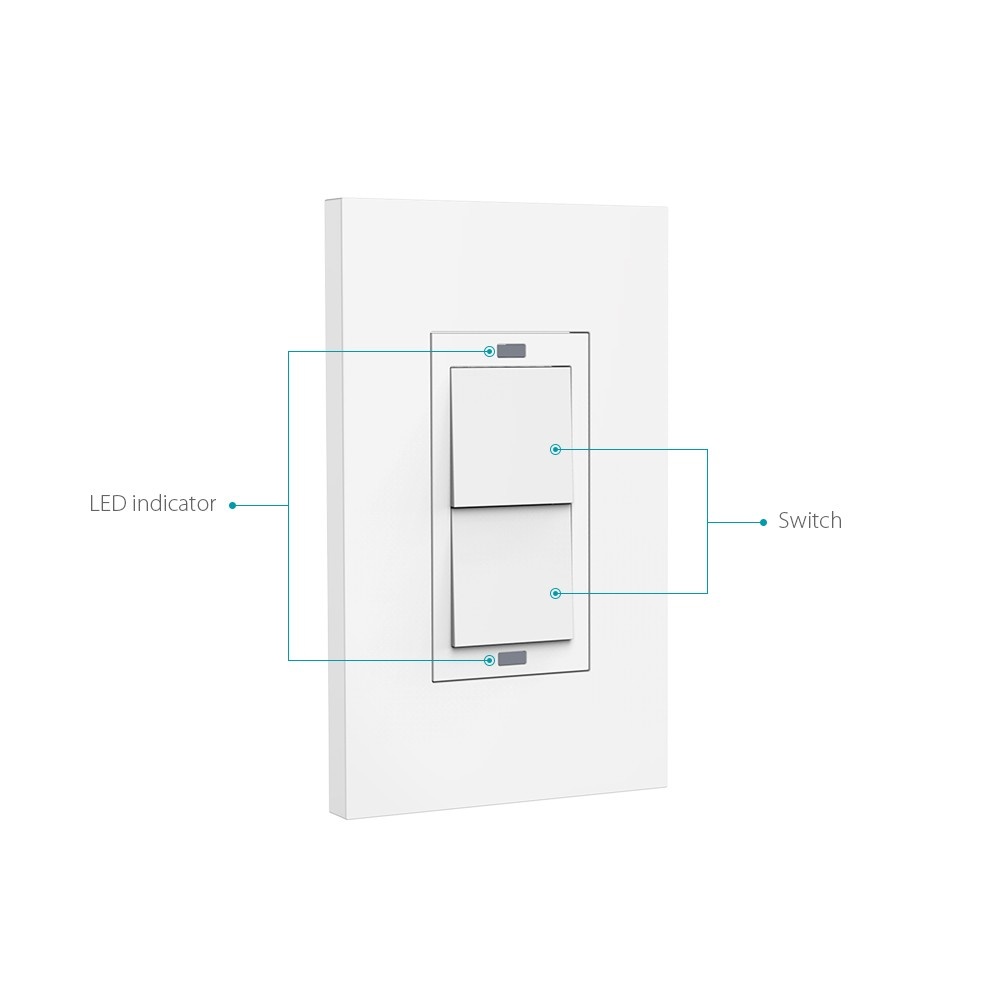

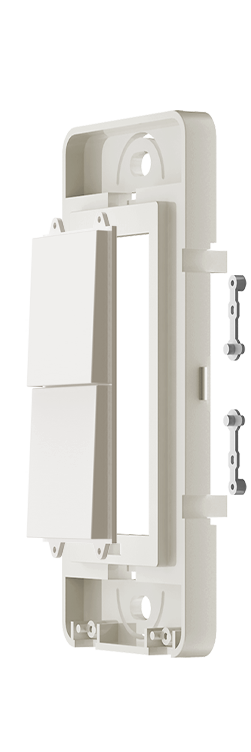

Intelligent Control Panel

Adopt industrial-grade IOT chip with low-power consumption from 0.75W to 1 W.

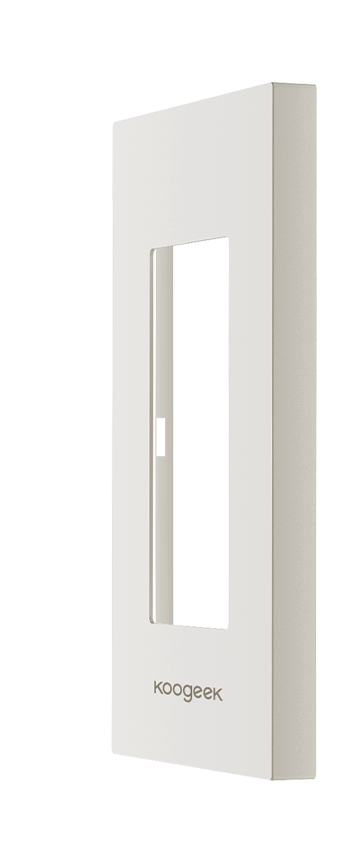

  • High-polished PC panel
  • Inching switch can withstand up to 50,000 times of press and work up to 10 years.
  • Intelligent Control Panel adopts industrial-grade IOT intelligent chip with low-power consumption from 0.75W to 1 W.

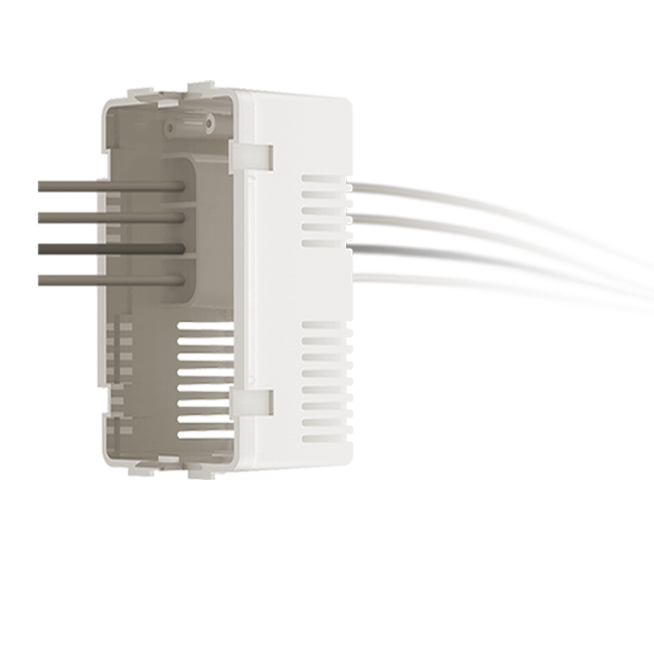

  • In-wall back panel

    There is no reviews

KH02 Light Switch
  • Siri Controlled

    Use voice to control your device

  • Schedule

    Set schedules and timers to automate your home

  • Easy to control

    Control the Smart Light Switch from anywhere with your smartphone

  • Consumption Monitor

    Show energy consumption or electricity cost

Configuration
Works with Apple Homekit
Apple homekit technology provides an easy, secure way to control homekit-enabled accessories
Siri Compatibility for Voice Control
Conveniently switch your lights on and off using Siri or with a quick tap on your iPhone.Assign a name to each Smart Switch and communicate each Switch by name when making a voice command.
Monitor Power Consumption
Check whether your Koogeek Smart Light Switch is connected properly with a standard light. Monitor its current power and state via the free Koogeek Home app.
Remote Control
You can set up your Apple TV (4th generation or later with tvOS 10 or later) or iPad (running iOS 10 or later) as a home hub and control Koogeek Smart Light Switch even when you're away from home.
Create Scenes to Control Multiple Accessories
Create individualized scenes and control multiple lights simultaneously with a single Siri voice command or a quick tap on your iPhone.
2-gang Design
The 2-gang design enables you to control and monitor two connected lights simultaneously with one smart switch.
Wide Compatibility
Compatible with all single pole light switches. Not intended for use in 3-way light switches, which are controlled by more than one switch.
Note
1. Koogeek Smart Switch replaces single pole switches only. Not compatible with 3-way switches, which could be controlled from multiple locations. 2. Neutral wire is required. 3. Metal faceplates are not recommended. Otherwise, it may cause harmful interference to Wi-Fi performance.
System Requirements
HomeKit requires an iPhone, iPad, iPod touch or Apple Watch with iOS 8.1 or later
Certifications
ETL, FCC, Wi-Fi
Power Input
100~120VAC, 60Hz
Power Output
100~120VAC
Resistive
2*5A, 2*600W
Switch Type
Single pole
Switch Style
Two-way
Home Wi-Fi
2.4Ghz (802.11 b/g/n)

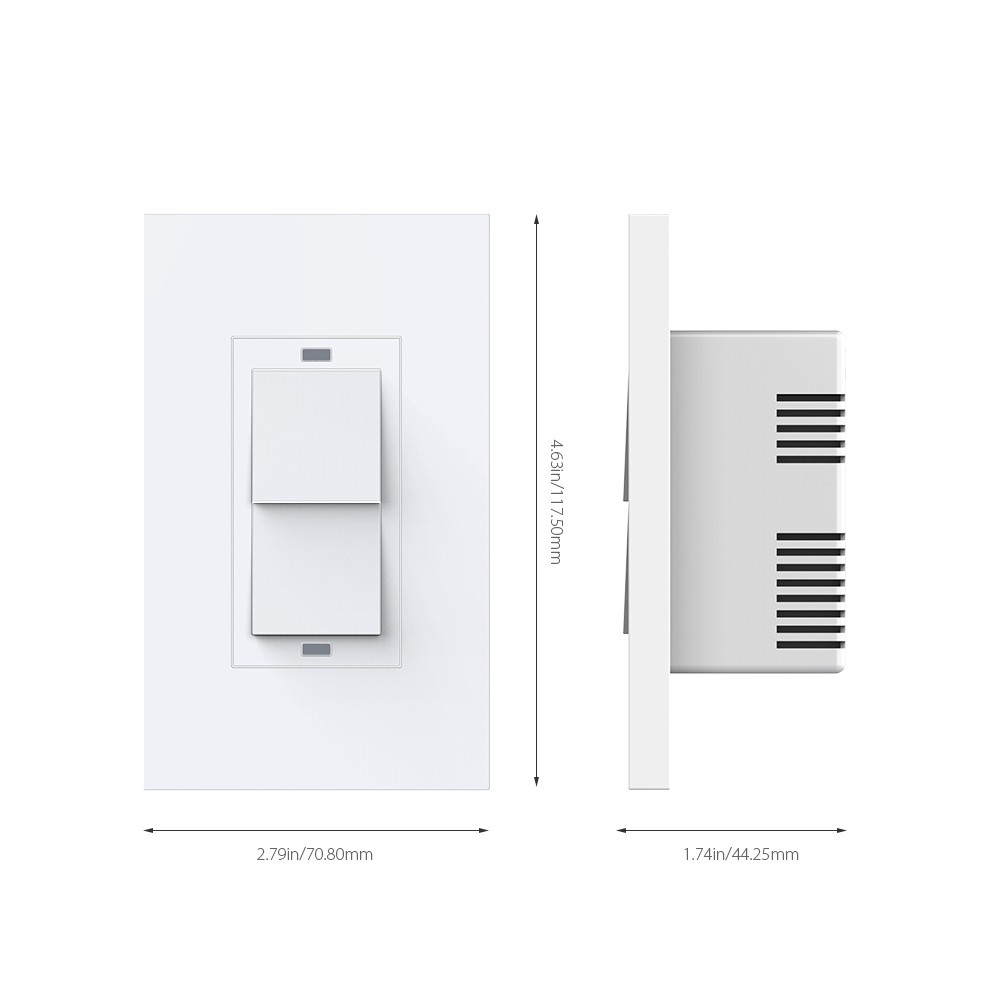

Size and Weight
  • Length: 117mm
  • Width: 70mm
  • Thickness: 45mm
  • Weight: Approx. 196g
Package contents

Koogeek Wi-Fi Enabled Smart Light Switch / 4 * Wire Nuts / 2 * Screws / Instruction Manual
